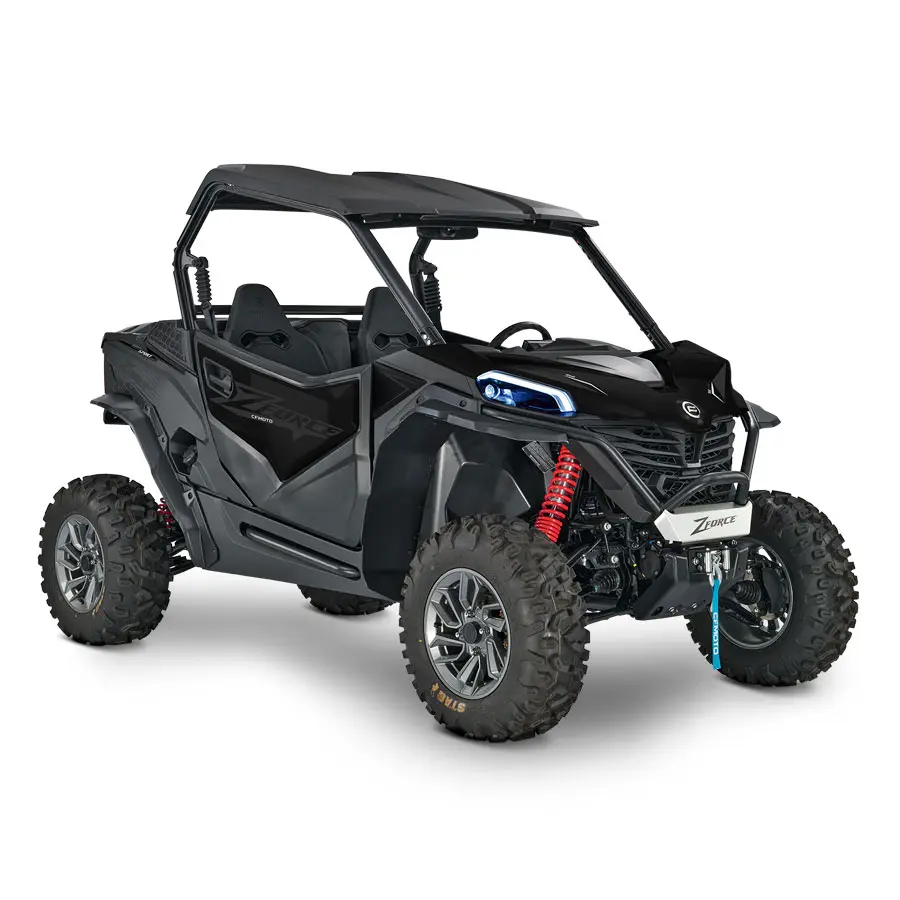

ZFORCE 950 SPORT-2 (1000CC UTV CF1000SZ-3A) 2024

ENGINE

ENGINE TYPE

V-Twin, liquid cooled, 4-stroke, SOHC, 8-valve

DISPLACEMENT

963cc

MAX POWER

85 HP @ 7750 RPM

MAX TORQUE

60 LB-FT @ 6200 RPM

FUEL SYSTEM

Bosch® EFI

COOLING SYSTEM

Liquid cooled

DRIVE

2WD/4WD/4WD lock

TRANSMISSION

CVTech® Automatic P/R/N/H/L

STARTER

Electric

DIMENSIONS & WEIGHT

LENGTH X WIDTH X HEIGHT

151” x 60” x 74”

WHEELBASE

120”

CURB WEIGHT

1753 lbs.

GROUND CLEARANCE

12”

FUEL TANK CAPACITY

9.8 gal.

CHASSIS

SUSPENSION

Front: Independent arched dual A-arm / Rear: TTA Suspension (Dual A-arm & connection rod)

WHEELS

Front/Rear: 14” Cast aluminum alloy with beadlocks

TIRES

Front: 27” x 9” x R14 CST Stag / Rear: 27” x 11” x R14 CST Stag

SHOCKS

Front/Rear: High pressure gas w/ piggyback reservoir, 7-position compression adjustable

BRAKING

Front/Rear: Hydraulic disc with parking brake

STANDARD EQUIPMENT

HITCH/RECEIVER

2”

TOWING CAPACITY

1500 lbs.

WINCH

4500 lbs.
