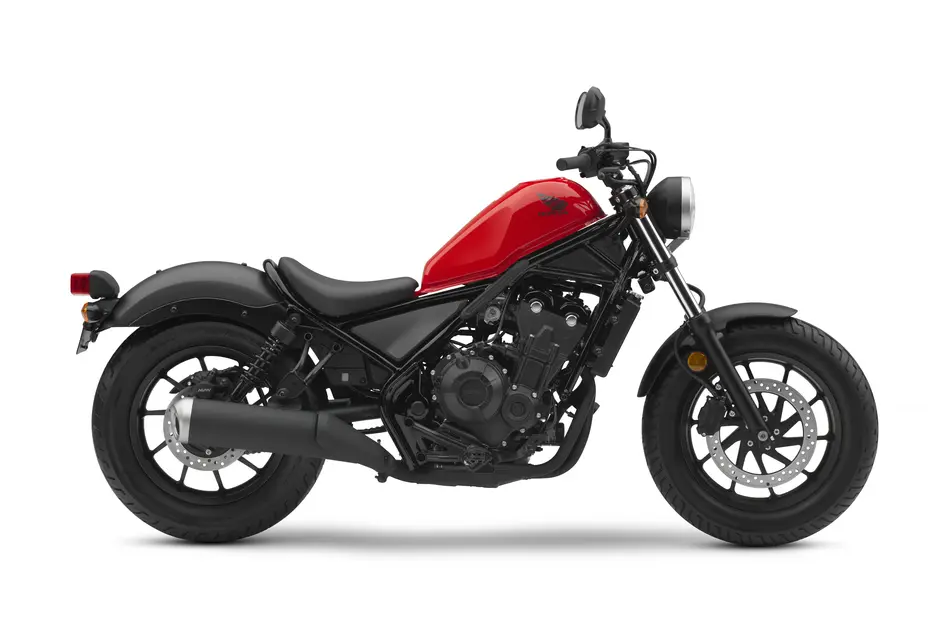

Honda CMX500AP Rebel 2023
Engine
| Engine Type | 471cc liquid-cooled parallel-twin four-stroke |
|---|---|
| Bore And Stroke | 67.0mm x 66.8mm |
| Induction | Programmed Fuel Injection (PGM-FI); 34mm throttle body |
| Valve Train | DOHC; 4 valves per cylinder |
| Compression Ratio | 10.7:1 |
Drive Train
| Transmission | Six-speed manual |
|---|---|
| Final Drive | O-ring-sealed chain; 15T/40T |
Chassis Suspension Brakes
| Front Suspension | 41mm fork; 5.5-inch travel |
|---|---|
| Rear Suspension | Dual shocks, 3.7-inch travel |
| Front Brake | Single 296mm disc; ABS |
| Rear Brake | Single 240mm disc; ABS |
| Front Tire | 130/90-16 |
| Rear Tire | 150/80-16 |
Dimensions
| Rake | 28.0° |
|---|---|
| Trail | 4.3 inches |
| Wheelbase | 58.7 inches |
| Seat Height | 27.2 inches |
| Curb Weight | 414 pounds (Includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 11.3 Liters |
| Color: Red |
